Commercial Heater · Model Commercial Immersion Heater

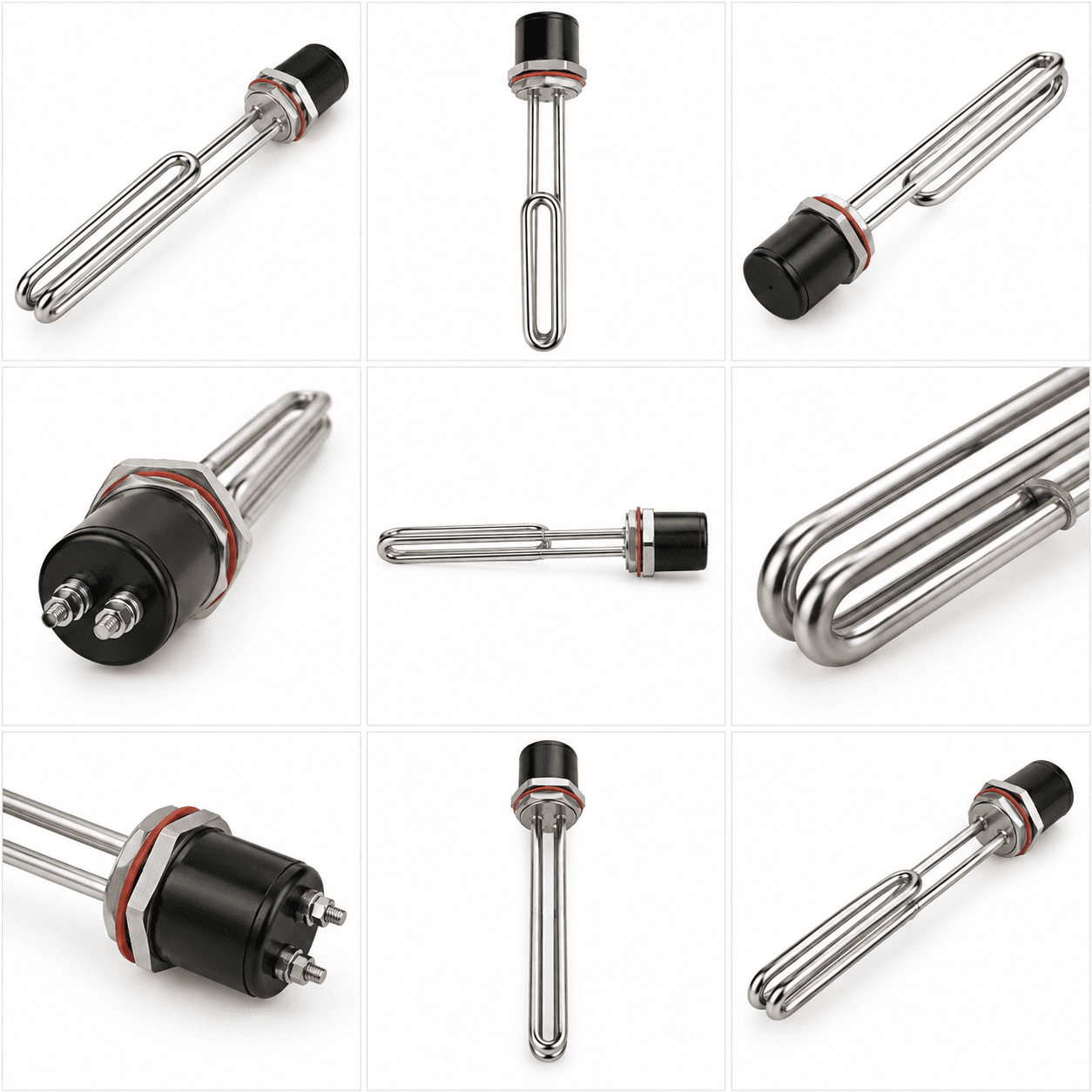

Commercial Immersion Heater
The Commercial Immersion Heater is a direct-contact electric heating solution designed for heating water, oils, glycol solutions, and other compatible process liquids in commercial and industrial equipment. The heating element is installed through a threaded connection and immersed directly into the heating medium, allowing heat to be transferred directly to the liquid. Commercial immersion heaters are commonly used in boilers, water-heating systems, heat-transfer equipment, laundry machinery, food processing equipment, oil-heating systems, and steam-generation applications. BSP Industries offers Commercial Immersion Heaters in stainless steel, copper, and Incoloy constructions, with wattage configurations from 1000W to 12000W and customizable designs. Multiple thread sizes, immersion lengths, washer options, and an optional thermostat configuration are available to suit different equipment and process requirements.
Pricing is quoted per enquiry based on quantity and delivery location.
Key features
- Direct immersion heating design
- Designed for commercial and process-liquid heating
- Suitable for water, oil, glycol and compatible process fluids
- Available in 1000W, 6000W, 9000W and 12000W configurations
- Customizable wattage according to application requirements
- 220-240V voltage configuration
- Stainless steel, copper and Incoloy material options
- Available in 9", 12", 15" and 18" standard lengths
- Customizable heater length
- Multiple threaded mounting options
- 1", 1.25", 1.5", 2" and 2.5" thread sizes
- BSP thread configuration available
- Rubber and silicone washer options
- Thermostat option for temperature control
- Suitable for boilers, water heating and heat-transfer systems
- Suitable for commercial food and laundry equipment
Key applications
- Heat Transfer Systems
- Boilers and Water Heating
- Laundry Machines
- Food Processing Equipment
- Lube and Fuel Oil Heating
- Hydraulic and Heat Transfer Oils
- Water-Glycol Solution Heating
- Chemical Heating
- Steam Generators
Specifications
- Product Type
- Commercial Immersion Heater
- SKU
- —
- Wattage
- 1000W | 6000W | 9000W | 12000W | Customizable
- Voltage
- 220-240V
- Material
- Stainless Steel | Copper | Incoloy
- Master Packing
- 12 Pcs.
- Length
- 9" | 12" | 15" | 18" | Customizable
- Thread Size
- 1" | 1.25" | 1.5" | 2" | 2.5" | BSP
- Washer
- Rubber | Silicone
- Additional
- Thermostat
- Heating Method
- Direct Immersion
- Mounting
- Threaded
