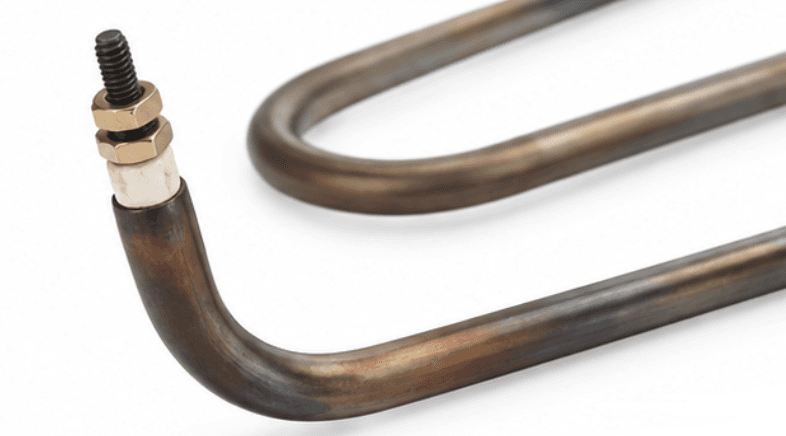

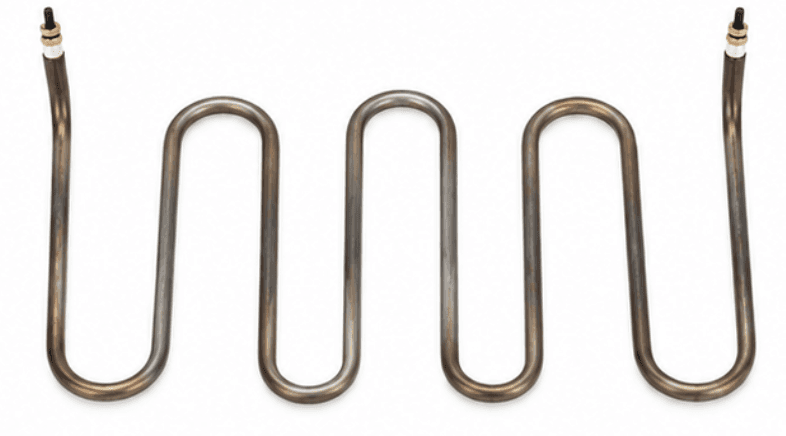

Many Fold Oven Element heating element product image

Industrial

Industrial Heater · Model Many Fold Oven Element

Many Fold Oven Element

The Many Fold Oven Element is a formed tubular electric heating element designed for oven and industrial heating applications where a compact, extended heating path is required. Its multiple bends and folds allow the heating element to cover a larger heating area while fitting within a defined installation space. Depending on the equipment design, the element can provide heat through radiation, convection, or direct contact with the heated surface. BSP Industries offers Many Fold Oven Elements with stainless steel and Incoloy material options, along with customizable wattage, length, diameter, and overall design. The elements are suitable for industrial ovens and furnaces, process air and gas heating, thermoforming, curing, drying, packaging equipment, medical and analytical equipment, laboratory sterilizers, environmental chambers, and other specialized heating systems. Many-fold tubular elements are commonly used where an extended heating element needs to be arranged within a compact oven or heating chamber.

Ask on WhatsApp

Pricing is quoted per enquiry based on quantity and delivery location.

Key features

Multi-fold tubular heating element design
Compact arrangement for extended heating coverage
Designed for oven and furnace heating applications
Suitable for convection and radiant heating applications
Stainless steel and Incoloy material options
Available in 200W and 4000W configurations
Customizable wattage according to application requirements
220-240V voltage configuration
Customizable element length
Customizable overall design and bend configuration
Customizable diameter
Suitable for process air and gas heating
Suitable for thermoforming, curing and drying equipment
Suitable for packaging and laboratory equipment
Suitable for customized industrial heating systems

Key applications

Metal Mold Die and Platen Heating
Medical and Analytical Device Heating
Cast Into Metal Parts and Platens
Cut and Seal Heads on Packaging Equipment
Tank Wall and Pipe Heating
Liquid Immersion and Circulation Heaters
Comfort Heating and Freeze Protection
Furnace and Oven Heating
Process Air and Gas Heating
Thermoforming, Curing and Drying
Incubators
Laboratory Sterilizers
Environmental Chambers

Specifications

Product Type: Many Fold Oven Element
SKU: —
Wattage: 200W | 4000W | Customizable
Voltage: 220-240V
Material: Stainless Steel | Incoloy
Master Packing: 25 Pcs.
Length: Customizable
Design: Customizable
Diameter: Customizable
Shape: Many Fold
Element Type: Tubular
Heating Method: Convection | Radiation | Direct Contact
