Industrial Heater · Model Oven Tubular Heater

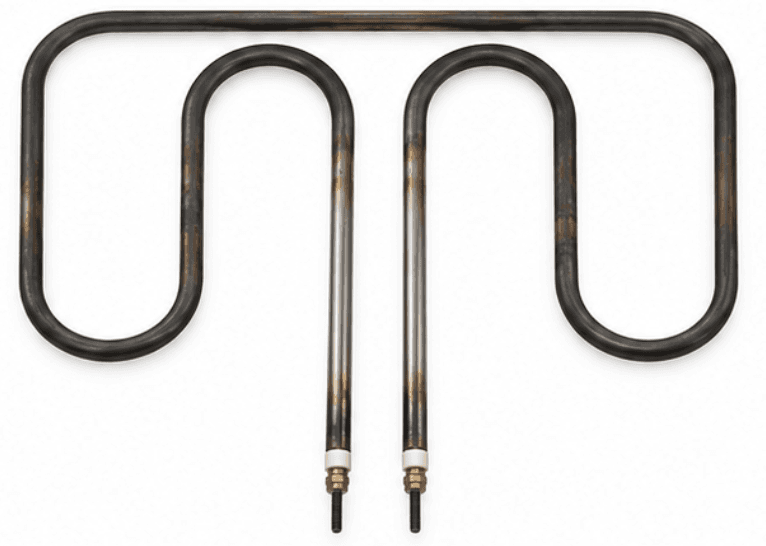

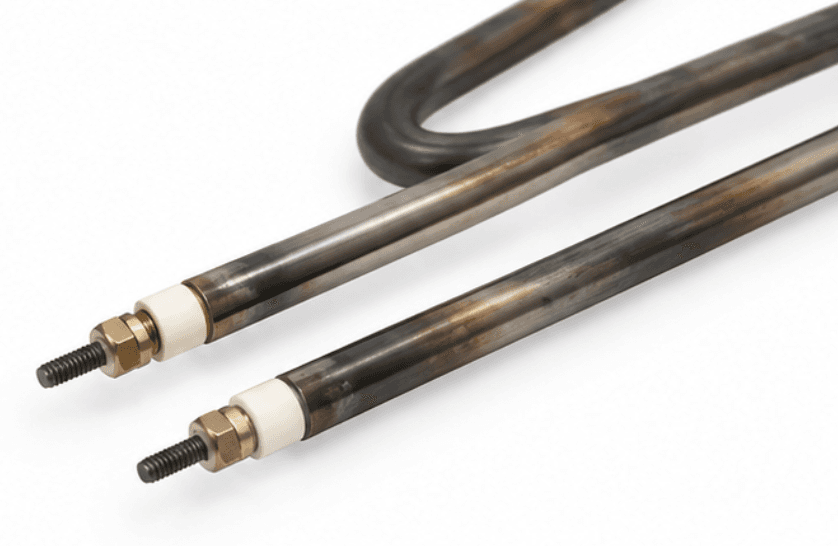

Oven Tubular Heater
The Oven Tubular Heater is a versatile electric heating element designed for controlled heating of air, gases, metal surfaces, molds, platens, tanks, and process equipment. Its tubular construction allows the heating element to be configured according to the available installation space and heating requirements, making it suitable for oven and furnace heating as well as direct-contact and process-heating applications. The heater can transfer heat through conduction, convection, and radiation depending on the installation and application. BSP Industries offers customizable tubular heaters in stainless steel and Incoloy constructions, with customizable length, diameter, and design configurations. These heaters are suitable for industrial ovens and furnaces, process-air and gas heating, metal mold and platen heating, packaging equipment, medical and analytical equipment, drying and curing systems, liquid immersion and circulation heating, and other specialized thermal-processing applications. Tubular heating elements are widely used in ovens, molds, platens, air/gas heating and immersion applications.
Pricing is quoted per enquiry based on quantity and delivery location.
Key features
- Tubular electric heating element
- Designed for oven and furnace heating applications
- Suitable for conduction, convection and radiant heating
- Suitable for heating metal molds, dies, platens and other solid components
- Stainless steel and Incoloy material options
- Available in 200W and 4000W configurations
- Customizable wattage according to application requirements
- 220-240V voltage configuration
- Customizable element length
- Customizable element design and configuration
- Customizable diameter
- Suitable for process air and gas heating
- Suitable for liquid immersion and circulation heating
- Suitable for packaging, laboratory and specialized industrial equipment
Key applications
- Metal Mold, Die and Platen Heating
- Medical and Analytical Device Heating
- Cast Into Metal Parts and Platens
- Cut and Seal Heads on Packaging Equipment
- Tank Wall and Pipe Heating
- Liquid Immersion and Circulation Heating
- Comfort Heating and Freeze Protection
- Furnace and Oven Heating
- Process Air and Gas Heating
- Thermoforming, Curing and Drying
- Incubators
- Laboratory Sterilizers
- Environmental Chambers
Specifications
- Product Type
- Oven Tubular Heater
- SKU
- —
- Wattage
- 200W | 4000W | Customizable
- Voltage
- 220-240V
- Material
- Stainless Steel | Incoloy
- Master Packing
- 25 Pcs.
- Length
- Customizable
- Design
- Customizable
- Diameter
- Customizable
- Heating Method
- Conduction | Convection | Radiation
- Element Type
- Tubular
