Industrial Heater · Model Strip Type Finned Heater

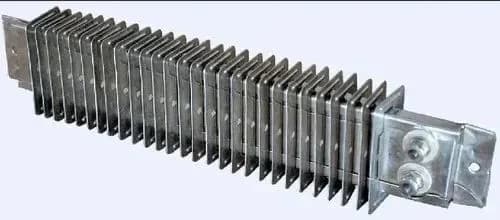

Strip Type Finned Heater
The Strip Type Finned Heater is an industrial electric heating element designed for controlled heating of air and gases. Its strip-type heating construction is combined with metal fins to increase the effective heat-transfer surface area, allowing heat to be transferred efficiently to moving or surrounding air. Finned strip heaters are commonly used in forced-air heating systems, ducts, ovens, dryers, air-handling equipment, and other process-air applications. The heater can be supplied in different material combinations, wattages, lengths, thicknesses, and connection configurations to suit specific equipment and installation requirements. BPS Industries offers customizable configurations for industrial heating applications where a compact finned heating arrangement is required.
Pricing is quoted per enquiry based on quantity and delivery location.
Key features
- Strip-type finned heating element
- Designed for air and gas heating applications
- Finned construction increases the effective heat-transfer surface area
- Suitable for forced-air and convection heating systems
- Available in stainless steel, mild steel and ceramic material options
- Stainless steel, mild steel and aluminium fin material options
- Available in 100W and 1000W configurations
- Customizable wattage according to application requirements
- 220-240V voltage configuration
- Available in multiple standard length options
- Customizable length and element thickness
- Lock and nut fitting options
- Wire and nut-bolt connection options
- Suitable for integration into industrial air-heating equipment
Key applications
- Coils for Hybrid Cooling Towers
- Printing Machines
- Production or Surface Coatings
- Petroleum Industry
- Chemical Industry
- Steel Industry
- Food Industry
- Plastic Molding Industry
- Greenhouse Heaters and Breeding
- Tanneries
- Anti-Freeze Coils for Processing Air
- Paper Works
- Wood Industry
- Glycol Dehydration Units
- Textile Production
Specifications
- Product Type
- Strip Type Finned Heater
- SKU
- —
- Wattage
- 100W | 1000W | Customizable
- Voltage
- 220-240V
- Material
- Stainless Steel | MS Steel | Ceramic
- Fins Material
- Stainless Steel | Mild Steel | Aluminium
- Master Packing
- 25 Pcs.
- Length
- 12" | 18" | 21" | 24" | 29" | 33" | Customizable
- Thickness
- Customizable
- Fittings
- Lock | Nut
- Connection
- Wire | Nut Bolt
- Heater Type
- Strip Type Finned
